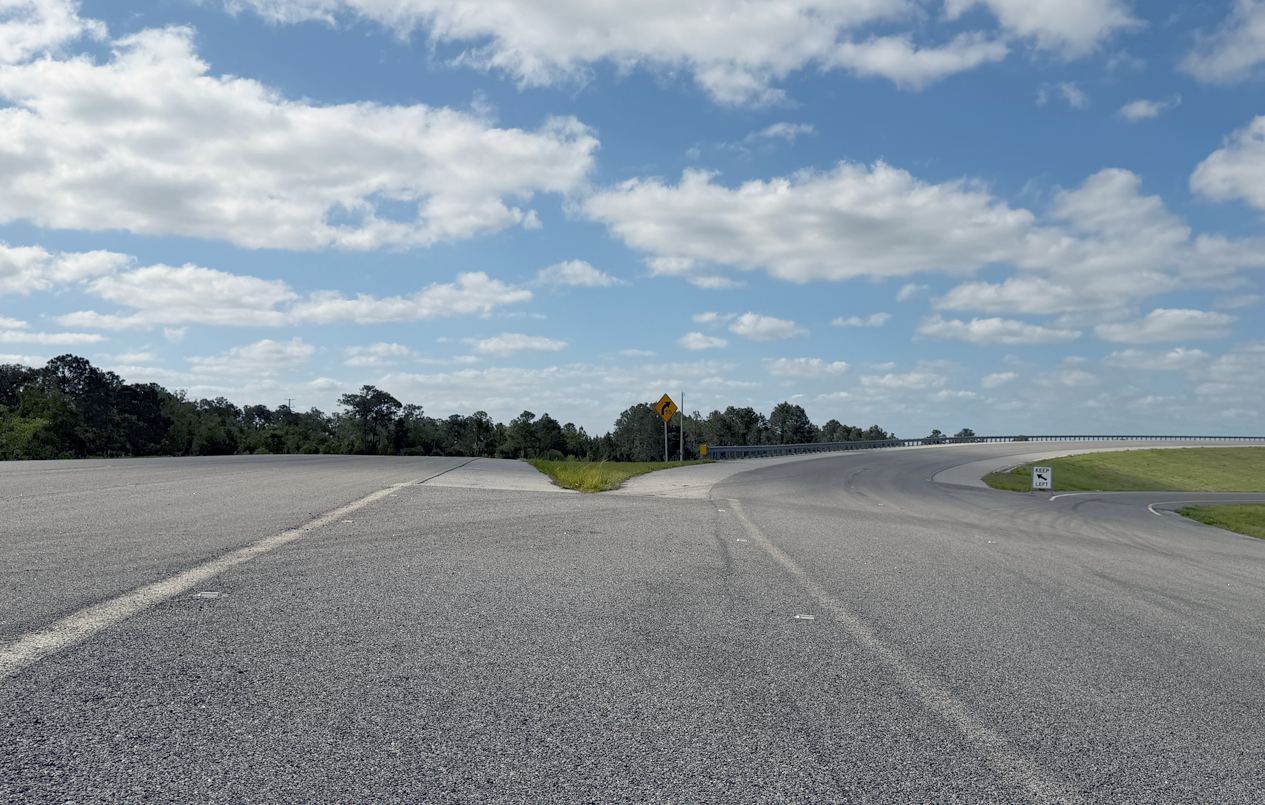

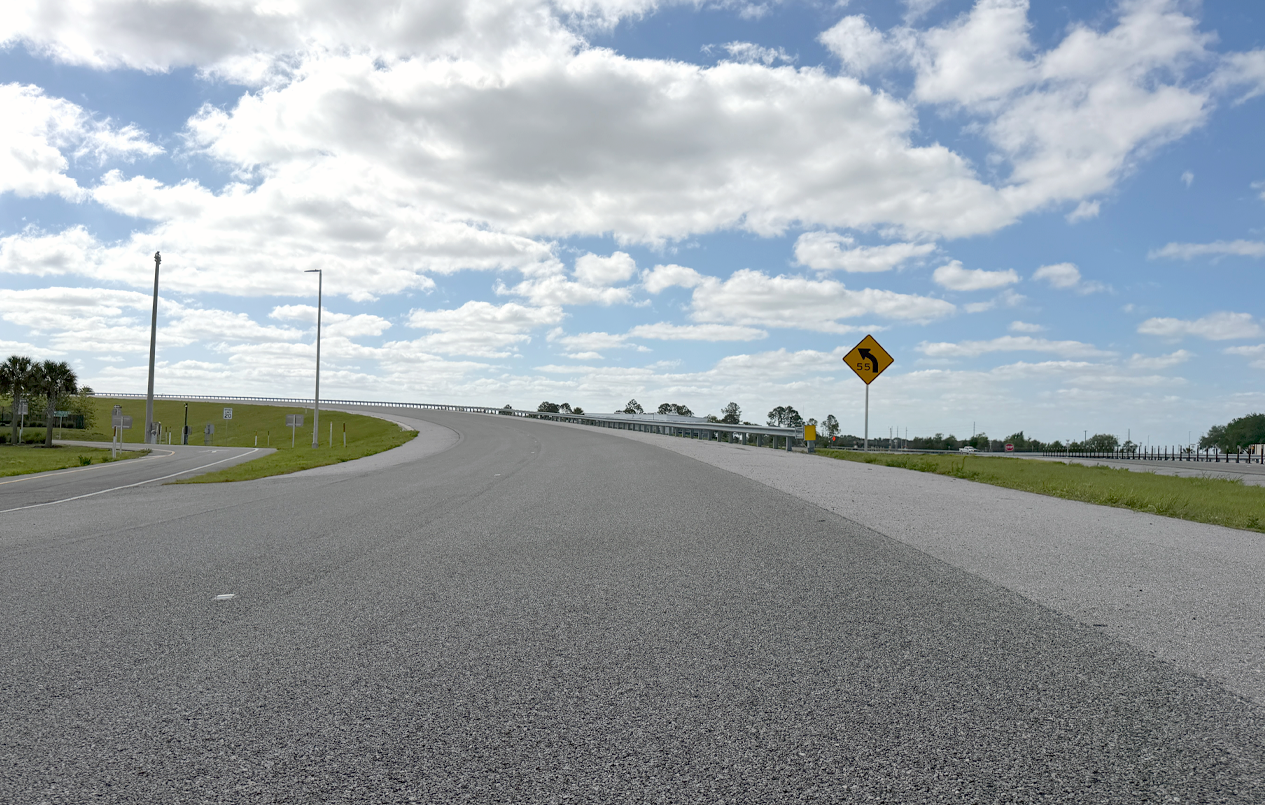

Oval Track

Total Track Distance 2.25 mi (3.60 km)

Straight away distance 2780 ft (752.85 m)

Number of Straightaways 2 Straightaways

Lane Widths 12 ft (3.65 m)

Track Lanes Around Curves 2 Lanes

Track Lanes Through Gantries 5 Lanes

Number of Gantries 4 Gantries

Gantry Clearance 18.50 ft (5.60 m)

Gantry Span 108 ft (32.90 m)

Number of staging areas 4 Staging Areas

Slope (at either end of oval) 10%

Slope (on straight aways) 3%

Total Number of Buildings

Interior Length 20 ft (6 m)

Interior Width 11.50 ft (3.50 m)

Interior Height 9.50 ft (2.90 m)

Normal Windspeed Load 155 mph (250 km/h)

Roof Monoslope (1.2 deg)

Steel Tie Down Plates 4 Tie Downs

Network Cable Fiber-optic

Clean Power Supply 40 kW

Maximum 40u Cabinets 4 Cabinets

Number of Overhead Circuits (Power Supply) 16 Circuits
