Wet Test Track
Technical Specifications
Overall Sector Dimensions
Total Sector Area
168,381 ft2 (15,643 m2)
Total Asphalt Area
138,381 ft2 (12,856 m2)
Total Area with Special Surfaces (4 Lanes)
30,000 ft2 (2,787.1 m2)
Width (4 Lanes)
120 ft (36.60 m)
Length of Run-Off Area (4 Lanes)
243 ft (74.10 m)
Length of Acceleration Lanes (4 Lanes)
435 ft (132.60 m)

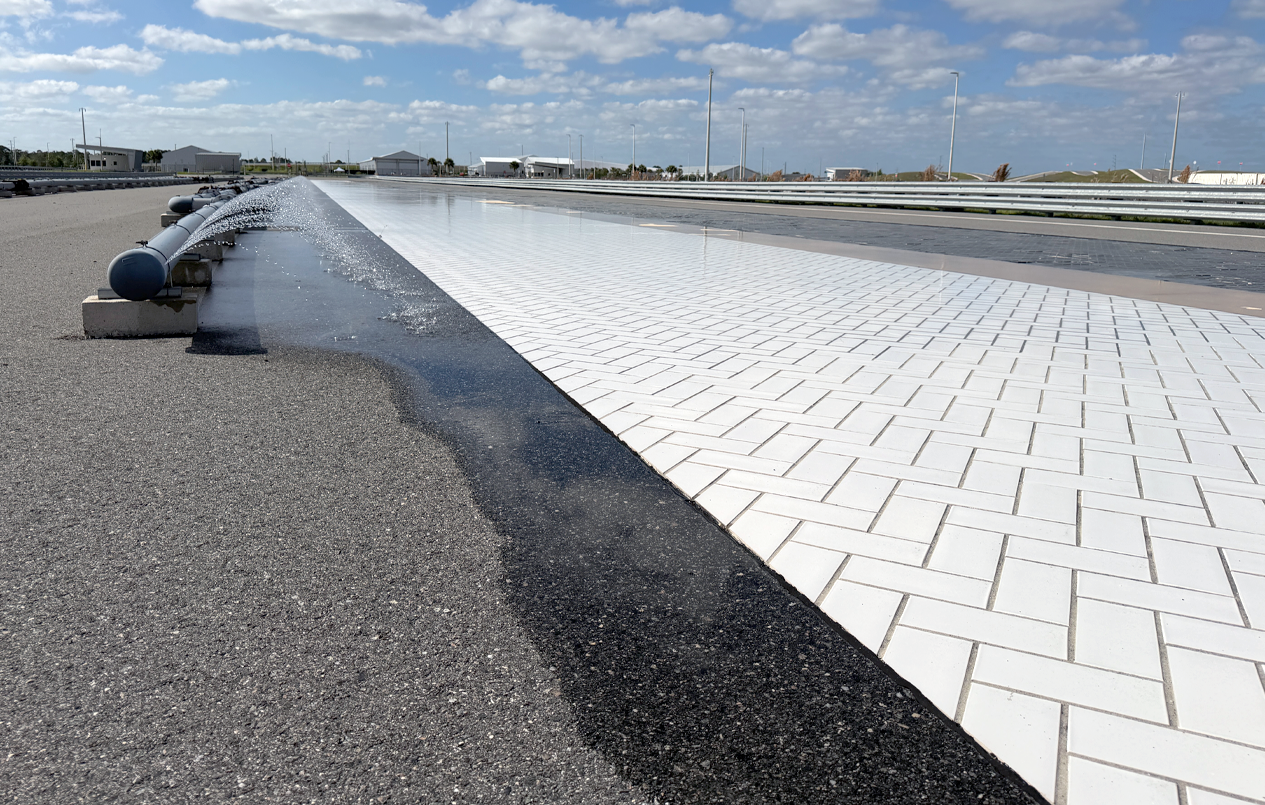

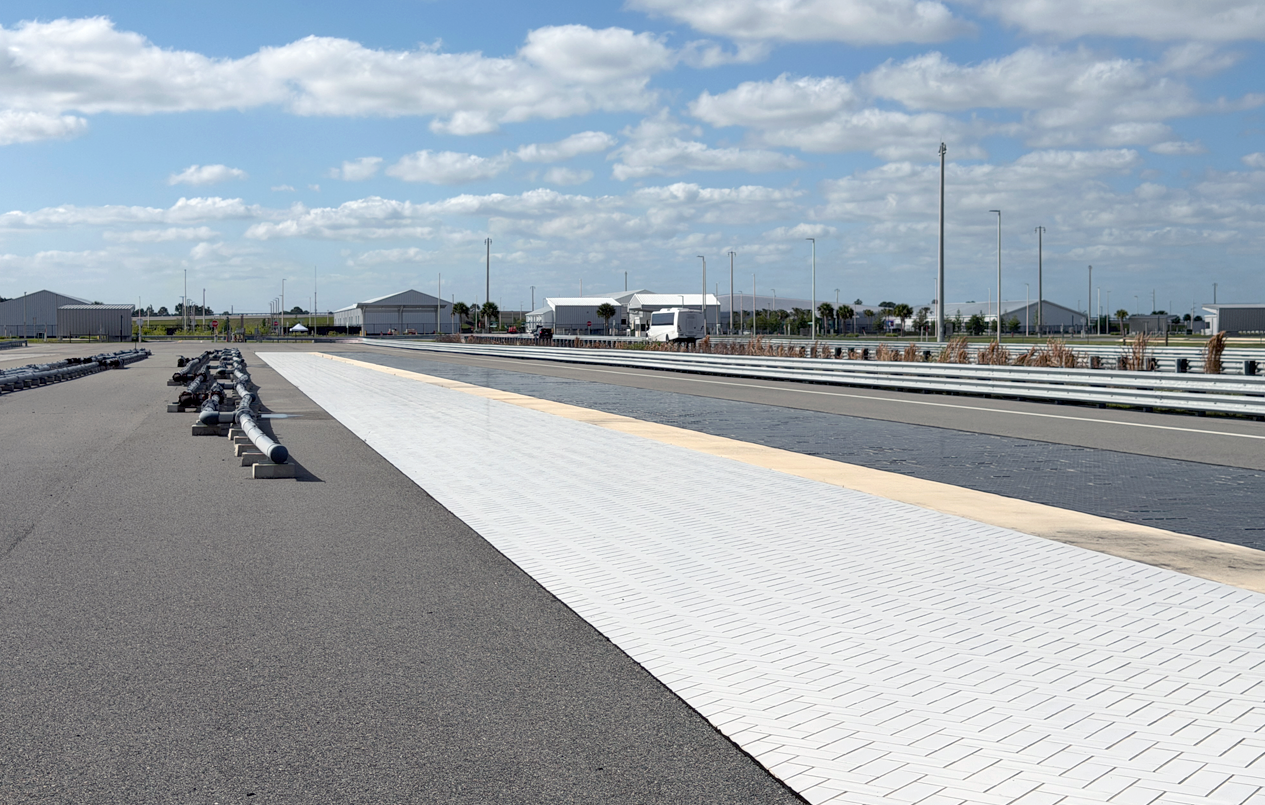

Lane 1 - Low-Friction Tiles
Surface
Ceramic Tiles
Width
15 ft (4.60 m)
Length
500 ft (152.40 m)
Lane Type
Irrigated Braking Lane
Height
Very Low µ

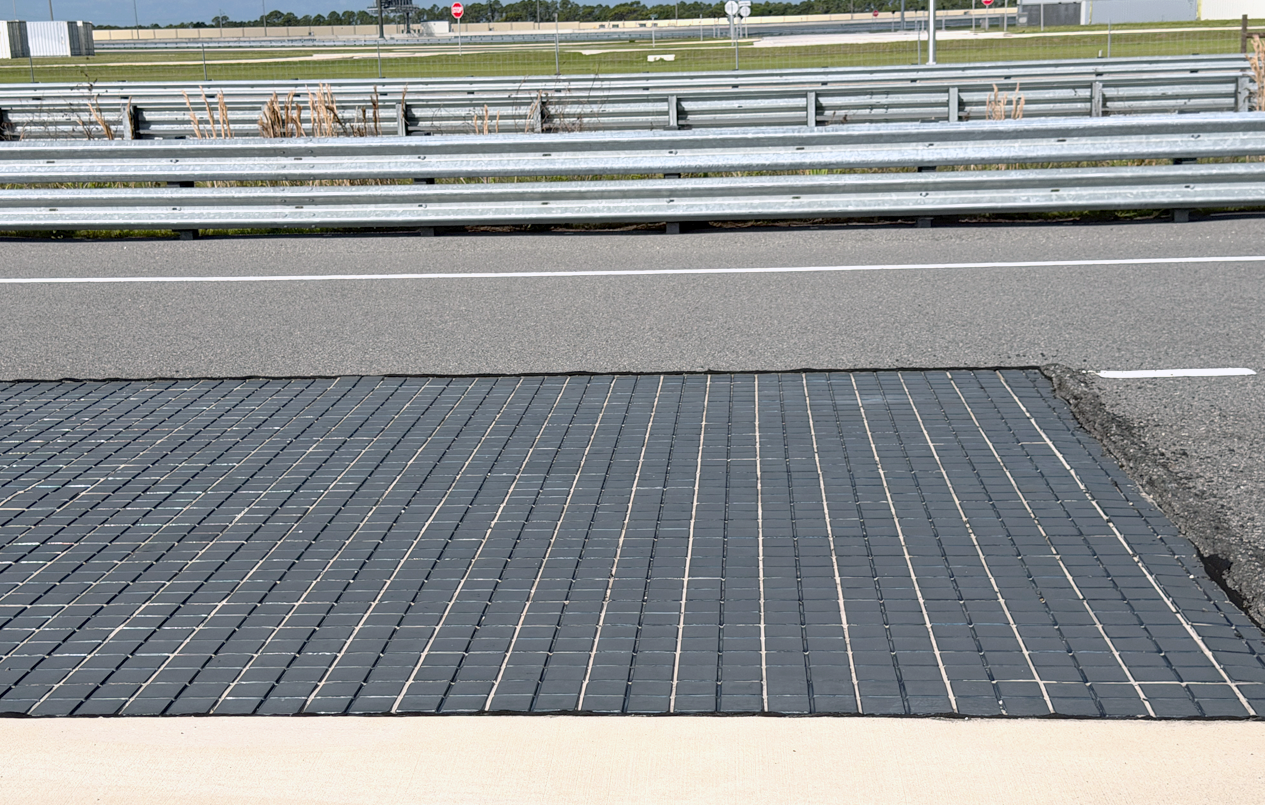

Lane 2 - Basalt Tiles
Surface
Basalt Tiles
Width
15 ft (4.60 m)
Length
500 ft (152.40 m)
Lane Type
Irrigated Braking Lane
Height
Low-Medium µ (~0.4)

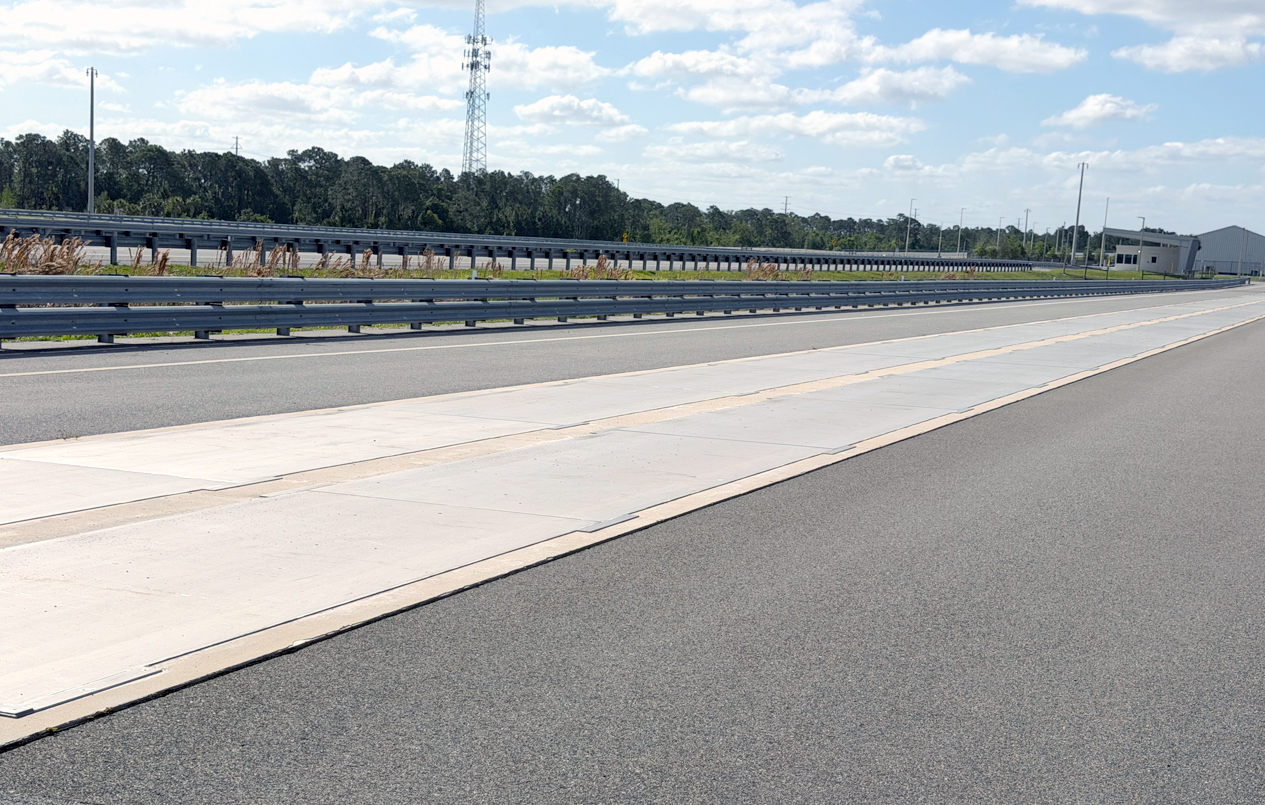

Lane 3 - Steel Plates
Surface
Stainless Steel Plate
Width
15 ft (4.60 m)
Length
500 ft (152.40 m)
Lane Type
Irrigated Braking Lane
Height
Low µ

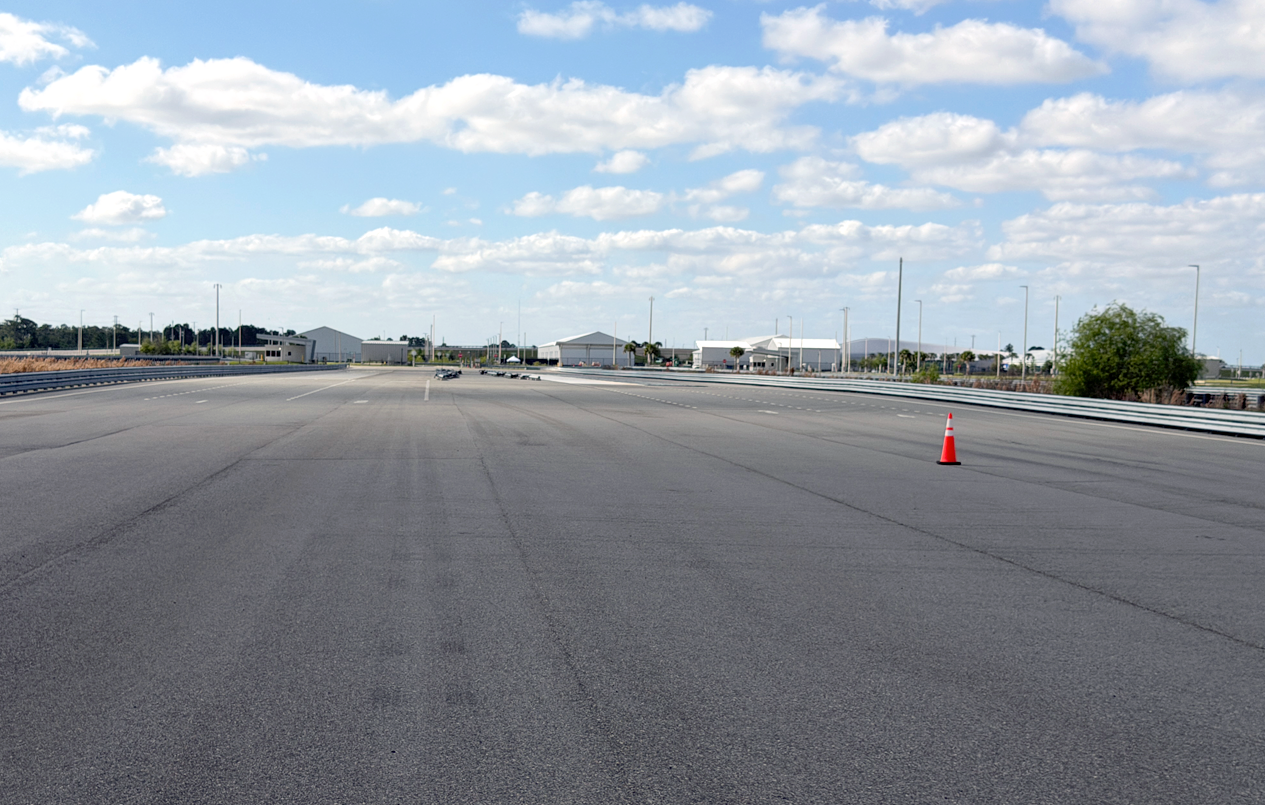

Lane 4 - Low-Friction Asphalt
Surface
Asphalt
Width
15 ft (4.60 m)
Length
500 ft (152.40 m)
Lane Type
Irrigated Braking Lane
Certification
UNECE Regulation #117
